Physical Security Testing

Testing Hoteling Office Spaces

Hoteling and hot-desking environments present unique security challenges. Shared workstations with docking stations create opportunities for attackers to compromise systems through physical access. This use case demonstrates how security professionals test these environments to identify vulnerabilities.

Scenario Overview

Modern offices increasingly use hoteling (desk reservation) and hot-desking (first-come, first-served) arrangements where employees don't have assigned workstations. These spaces typically include:

Universal docking stations with USB ports
Shared monitors, keyboards, and peripherals
Network connectivity for temporary users
Minimal physical security monitoring

This environment creates attack vectors that security teams need to identify and remediate.

Devices Used in This Test

This security assessment utilizes the following specialized penetration testing devices:

USB Drive Module

Endpoint infiltration and keyboard emulation

Keyboard Pass-Through Module

Inline keystroke capture and logging

Command Module

Centralized coordination and log collection

Testing Methodology

Initial Reconnaissance

Security testers identify hoteling stations throughout the facility. They document:

Docking station models and USB port availability
Physical security controls (cameras, badge readers)
Employee traffic patterns and desk usage frequency
IT support response procedures

Typical hoteling desk with docking station

🔍 Click to enlarge

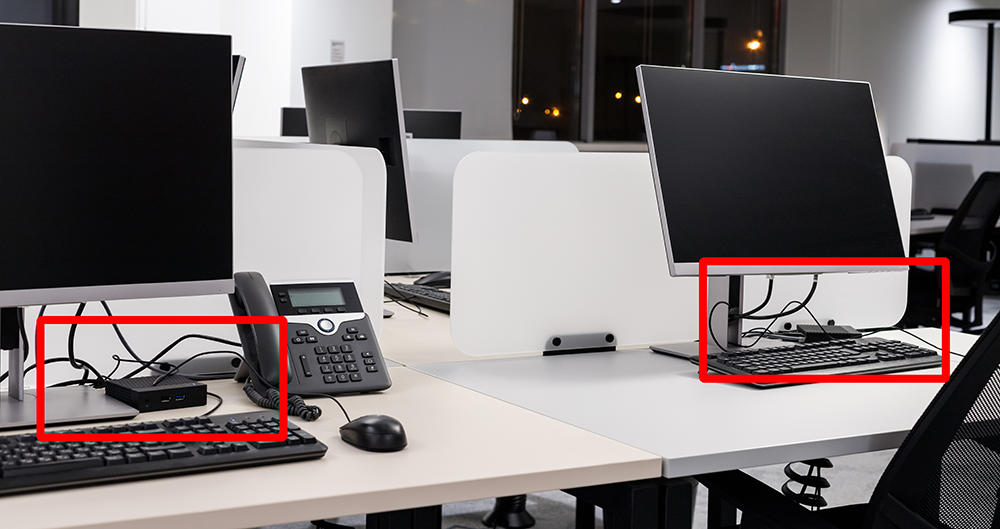

Typical hoteling desk with universal docking station

🔍 Click to enlarge

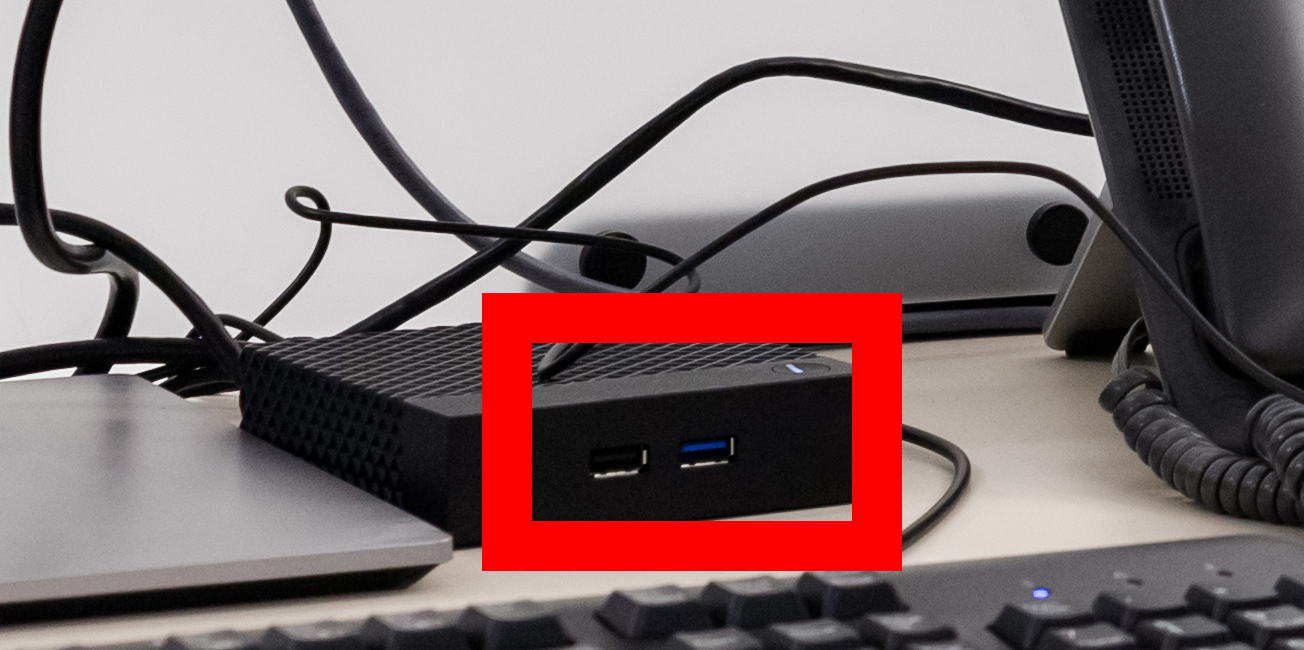

Multiple USB ports available for testing devices

Device Deployment

Authorized security testers deploy USB testing devices to available docking stations. These devices are configured to:

Remain dormant until activated by scheduled scripts
Log connection events and system information
Execute predefined test scenarios when laptops connect
Report findings back to the security team

⚠️ Authorization Required: This testing is only performed with explicit written authorization from organization leadership and legal counsel.

🔍 Click to enlarge

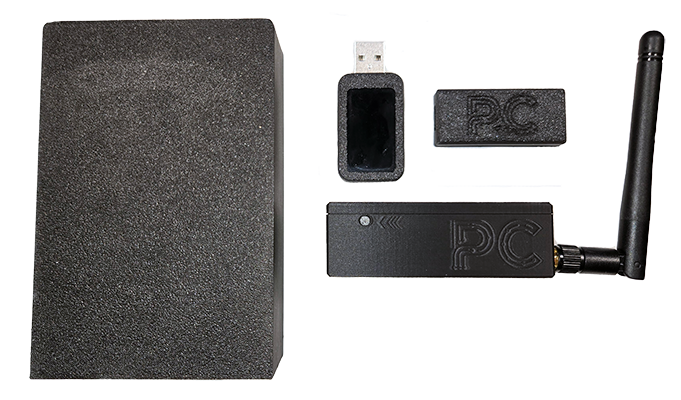

Specialized USB device for security testing (concealed in typical USB hub)

Automated Execution Script

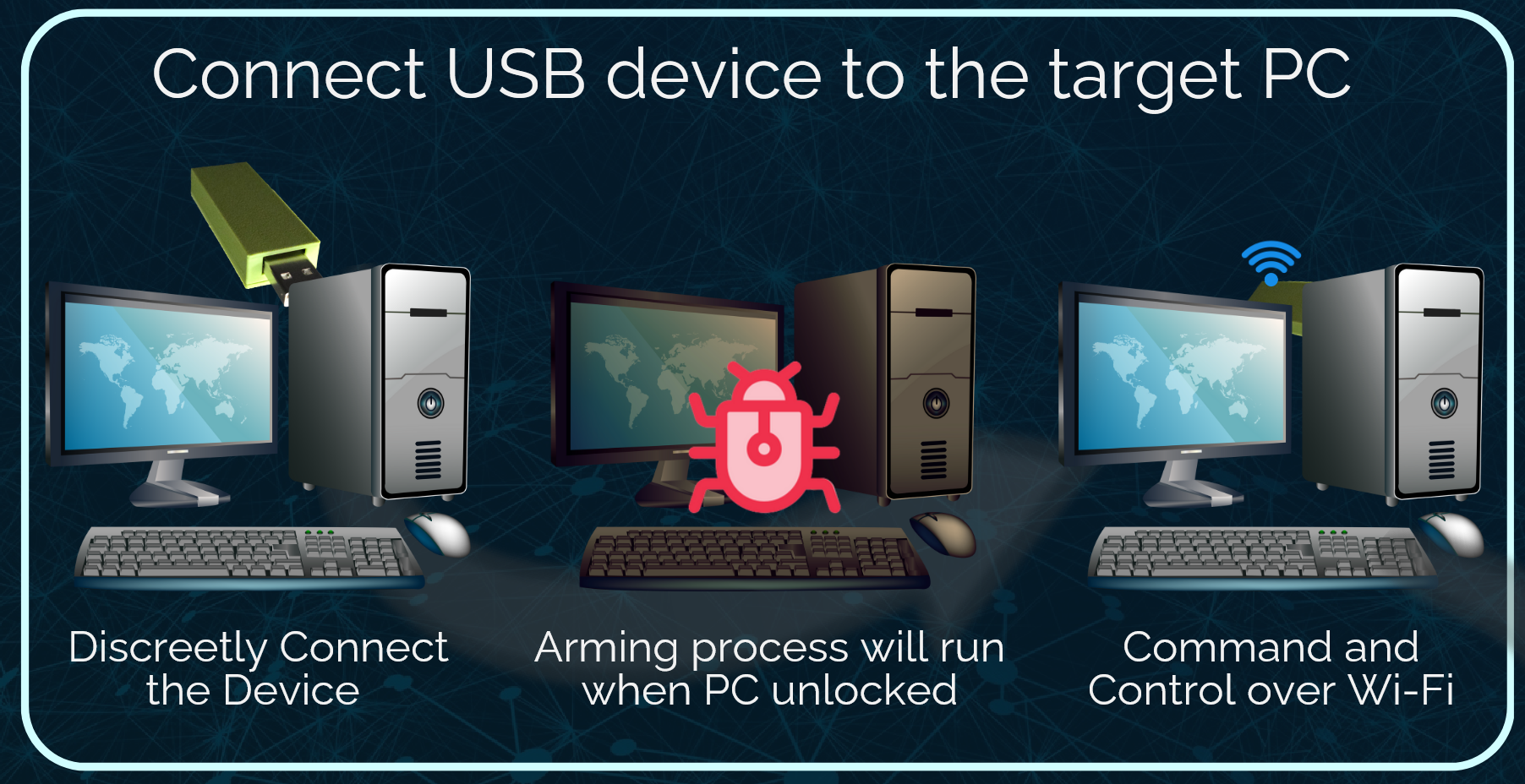

USB devices run an "arming" script at configured intervals. The typical attack simulation sequence includes:

Windows Execution:

Step 1: Device emulates keyboard input to open Run dialog (Win + R)
Step 2: Types command to open PowerShell in hidden mode
Step 3: Executes reconnaissance commands to gather system information
Step 4: Attempts to establish callback connection to test server

macOS Execution:

Step 1: Device emulates keyboard to open Spotlight (Cmd + Space)
Step 2: Searches for and opens Terminal application
Step 3: Executes shell commands in hidden Terminal window
Step 4: Gathers system configuration and network information

🔍 Click to enlarge

User sees brief Run window (Windows) or Spotlight (Mac) appear

🔍 Click to enlarge

After initial window, commands execute invisibly to the user

Attack Options & Data Collection

Once access is established, the security testing team evaluates multiple threat scenarios:

Persistence Installation

Test whether attackers could install scripts that survive reboots and provide ongoing access:

Startup folder entries
Scheduled tasks / cron jobs
Registry modifications (Windows)
Launch agents/daemons (macOS)

Data Exfiltration

Assess the risk of sensitive information theft:

Browser saved passwords and cookies
Recently accessed documents
Clipboard contents and keystrokes
Network credentials and certificates
Email and chat application data

Manual Command Execution

Evaluate whether attackers could execute commands in real-time:

Remote shell access via reverse connection
Lateral movement to other network resources
Privilege escalation attempts
Network reconnaissance and scanning

Persistent Compromise Chain

Test whether multiple users become compromised over time:

Each new laptop connection provides potential access
Device remains functional, arousing no suspicion
Compromise spreads as employees rotate through hoteling stations
Single physical breach yields multiple system compromises

MITRE ATT&CK Mapping

This testing methodology maps to the following MITRE ATT&CK tactics and techniques:

Initial Access

T1200: Hardware Additions - USB device deployment to docking stations
T1091: Replication Through Removable Media - USB-based initial compromise

Execution

T1059.001: Command and Scripting Interpreter: PowerShell - Automated PowerShell execution
T1059.004: Command and Scripting Interpreter: Unix Shell - macOS Terminal command execution
T1053: Scheduled Task/Job - Timed script execution from USB device

Persistence

T1547: Boot or Logon Autostart Execution - Startup folder and registry modifications
T1053: Scheduled Task/Job - Persistent scheduled tasks and cron jobs
T1543: Create or Modify System Process - Service creation for persistence

Discovery

T1082: System Information Discovery - OS and system configuration gathering
T1016: System Network Configuration Discovery - Network enumeration
T1033: System Owner/User Discovery - Current user identification

Collection

T1005: Data from Local System - File and credential harvesting
T1056: Input Capture - Keylogging capabilities
T1113: Screen Capture - Screenshots and display monitoring
T1115: Clipboard Data - Clipboard content collection

Command and Control

T1071: Application Layer Protocol - HTTP/HTTPS C2 channels
T1573: Encrypted Channel - Encrypted C2 communications
T1132: Data Encoding - Obfuscated C2 traffic

Findings & Vulnerabilities Identified

🔴 Critical: Zero USB Port Protection

Testing revealed that 100% of hoteling stations accepted USB devices without any security controls, endpoint protection, or monitoring.

🟠 High: Lack of Physical Monitoring

Testers were able to deploy devices during business hours without being challenged or detected by security cameras.

🟠 High: No Device Inventory

IT department had no inventory of approved devices, making unauthorized USB devices indistinguishable from legitimate peripherals.

🟡 Medium: Inadequate User Training

Employees did not report suspicious USB devices, and most were unaware of physical security threats in hoteling environments.

Recommended Countermeasures

Technical Controls

USB device whitelisting and port controls
Endpoint Detection and Response (EDR) solutions
Network segmentation for hoteling areas
Device authentication for docking stations
Application whitelisting to prevent unauthorized execution

Administrative Controls

Regular physical security audits of hoteling areas
Approved device inventory and asset tagging
Security awareness training on physical threats
Incident reporting procedures for suspicious devices
Daily inspection protocols for shared workstations

Impact & Results

This testing engagement successfully demonstrated critical vulnerabilities in the client's hoteling environment:

Hoteling Stations Tested

35+

Systems Compromised

72hrs

Test Duration

Detections by Security Team

Following our findings, the organization implemented comprehensive USB security controls, updated their physical security policies, and conducted company-wide training. Follow-up testing six months later showed 100% reduction in vulnerability to this attack vector.

⚖️ Ethical Testing Standards

All testing described in this use case was performed under strict ethical guidelines:

Full written authorization from executive leadership and legal counsel
Clearly defined scope and rules of engagement
No actual data exfiltration or system damage
Immediate notification of critical findings
Secure disposal of test data upon project completion
Compliance with all applicable laws and regulations

Learn more about our Ethical Use Policy.

Security Awareness Testing

Ransomware Simulation & User Response Testing

Employee response to ransomware incidents is a critical component of organizational security. This use case demonstrates how security teams test user awareness, incident reporting procedures, and organizational response capabilities through controlled ransomware simulations using USB-deployed devices.

Scenario Overview

Ransomware attacks represent one of the most significant cybersecurity threats facing organizations today. Testing how employees and security teams respond to ransomware incidents is essential for:

Validating incident response procedures and workflows
Measuring employee awareness and reaction time
Identifying gaps in detection and response capabilities
Training security teams with realistic attack scenarios
Assessing communication channels during security incidents

This controlled simulation uses USB devices to trigger realistic ransomware notifications that appear to encrypt a user's system, while safely logging all employee actions and organizational responses for comprehensive security assessment.

Devices Used in This Test

This security assessment utilizes the following specialized penetration testing devices:

USB Drive Module

Deploys ransomware simulation and logs user responses

Command Module

Coordinates testing and aggregates incident response data

Testing Methodology

Pre-Deployment Planning

Before initiating ransomware simulation testing, security teams conduct thorough preparation:

Obtain explicit written authorization from executive leadership and legal counsel
Coordinate with IT security team to ensure detection systems won't interfere with test
Define clear success metrics: reporting time, escalation procedures, containment actions
Prepare communication plan for post-test debriefing
Identify target user groups and systems for testing
Configure logging infrastructure to capture all user and system responses

⚠️ Critical Coordination: Unlike other penetration testing, ransomware simulations must be carefully coordinated to avoid causing panic, business disruption, or triggering unnecessary escalations to external parties (law enforcement, cyber insurance, media relations).

USB Device Configuration

Specialized USB devices are configured to deploy the ransomware simulation payload. These devices include:

Hardware-based keyboard emulation for credential-free execution
Onboard storage containing the simulation payload and logging components
Trigger mechanisms: time-based activation or manual triggering via physical button
Secure logging system to record all user interactions and timestamps
Fail-safe mechanisms to immediately halt simulation if critical errors occur

Physical Deployment & Activation

Authorized security testers deploy USB devices to target workstations using one of several approaches:

Deployment Methods:

Direct Installation: During non-business hours, testers connect devices to selected workstations in common areas, conference rooms, or specific departments being tested
Social Engineering Component: Devices may be placed as "found" USB drives in parking lots, break rooms, or reception areas to test whether employees connect unknown devices
Hoteling Integration: Devices integrated into docking stations or USB hubs in shared workspace environments

Activation Triggers:

Time-Delay: Device activates at predetermined time (e.g., 10:00 AM on Tuesday) to simulate business-hours attack
Connection-Based: Triggers when specific conditions are met (user logged in, network connected, specific time range)
Manual Trigger: Tester activates remotely or via physical button for precise timing control

Ransomware Simulation Execution

When activated, the USB device executes a carefully orchestrated sequence that simulates realistic ransomware behavior:

Execution Sequence:

Silent Preparation (5-10 seconds):
- Device emulates keyboard to open system command interface (PowerShell/Terminal)
- Deploys simulation payload to temporary directory
- Initializes logging system to capture all subsequent user actions
- Takes screenshot of desktop before simulation begins (baseline)
Visual Impact Display:
- Displays full-screen ransomware notice mimicking real-world ransomware families (e.g., styled similar to WannaCry, REvil, LockBit)
- Shows "encryption progress" bar advancing across files
- Presents ransom message with payment instructions and countdown timer
- Includes contact information and "unique infection ID" for tracking
Interactive Elements:
- Buttons to "decrypt files" (non-functional, logs clicks)
- Payment instructions with Bitcoin wallet address (test wallet, no actual transactions)
- Support chat interface (simulated, logs all messages user attempts to send)
- File browser showing "encrypted" files (visual overlay only, no actual encryption)

🛡️ Safety Measures: No actual file encryption occurs. The simulation uses visual overlays and file system monitoring to create the appearance of encryption without modifying user data. All actions are fully reversible.

🔍 Click to enlarge

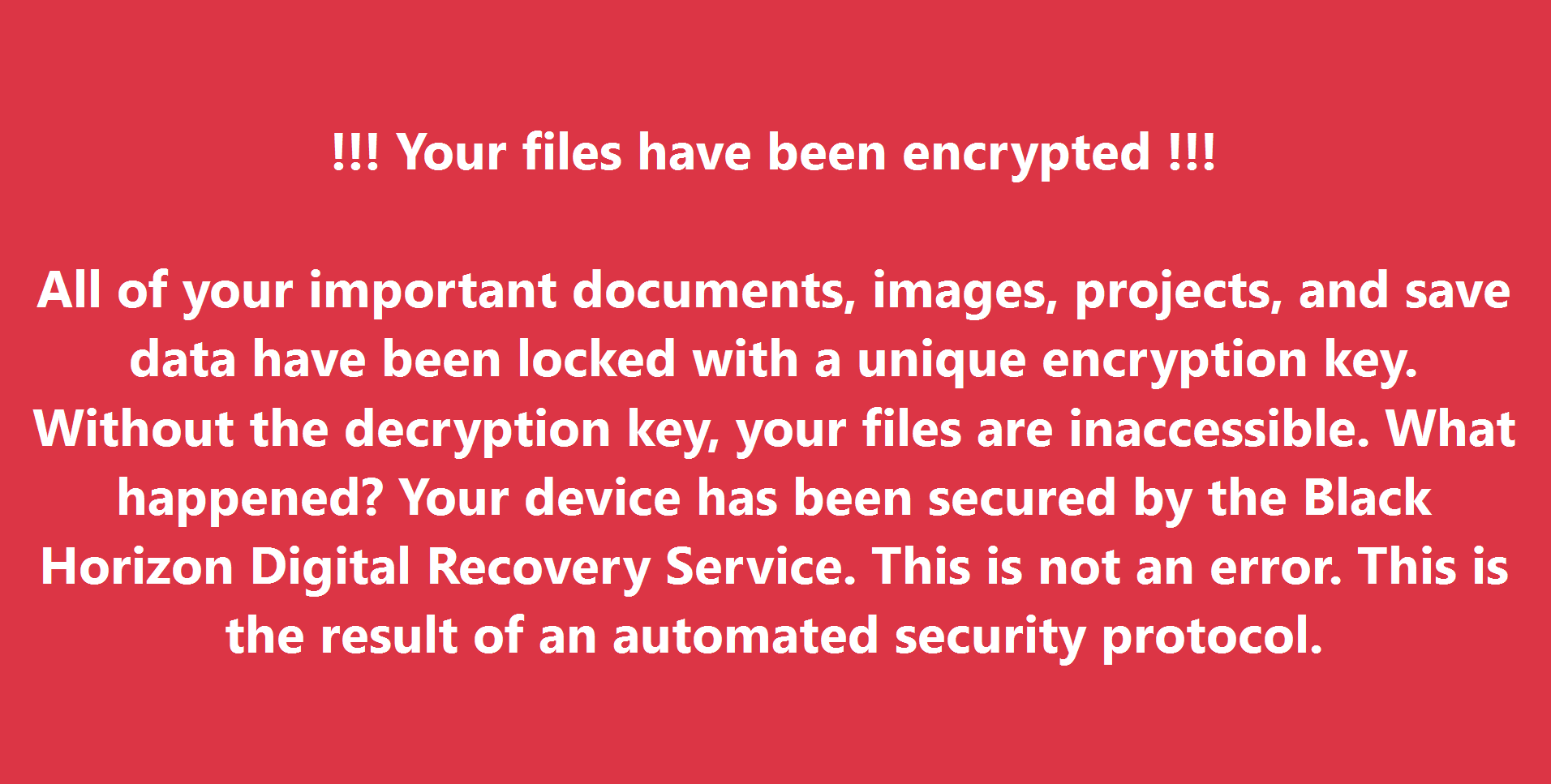

Full-screen ransomware notification displayed to user (simulation only)

Comprehensive Logging & Data Collection

The USB device's logging system captures detailed information about user and organizational response:

User Action Logging

Every interaction with the simulation is recorded with precise timestamps:

Initial Response Time: How long until user takes first action (move mouse, press key, etc.)
Interaction Attempts: Clicks on buttons, attempts to close window, keyboard shortcuts tried
Communication Actions: Phone picked up, attempts to contact IT, discussions with nearby colleagues
Compliance Actions: Whether user follows/violates security policies (e.g., attempts payment, removes USB devices, shuts down system)
Screenshots: Periodic captures showing exactly what user sees during incident

Response Time Metrics

Critical timing data for incident response assessment:

T+0: Ransomware notice appears on screen
T+[X]: User first acknowledges incident (moves mouse, touches keyboard)
T+[Y]: User contacts IT/Security (phone call, email, helpdesk ticket)
T+[Z]: IT/Security team acknowledges report and begins investigation
T+[W]: Incident formally escalated to appropriate response team
T+[V]: System quarantined or disconnected from network

Behavioral Analysis

Detailed psychological and behavioral response patterns:

Panic Indicators: Rapid clicking, repeated identical actions, random keystrokes
Problem-Solving Attempts: Task Manager access, trying Alt+F4, attempting safe mode boot
Policy Compliance: Follows incident response procedures vs. attempts independent resolution
Information Gathering: Reads entire message vs. immediate reaction without reading
Social Response: Immediately alerts others vs. keeps incident private

Network & System Monitoring

Secondary monitoring systems track organizational response:

Network Activity: When/if workstation is isolated from network
Security Tool Detection: Whether EDR, SIEM, or other security tools detect the simulation
Help Desk Activity: Ticket creation time, priority assignment, routing to appropriate team
Executive Notification: If/when leadership is informed of potential ransomware incident
Communication Channels: Which communication methods are used (email, phone, Slack, emergency channels)

Correlation & Incident Response Validation

After the simulation, security teams correlate logged device data with information employees reported to validate incident response procedures:

Correlation Analysis:

Report Accuracy: Compare employee's description of incident with actual logged events
- Did they accurately describe the ransomware message?
- Did they note the time correctly?
- Did they mention specific details (ransom amount, file types mentioned, etc.)?
Response Time Gaps: Identify delays in incident reporting chain
- Employee saw message at T+0 but didn't report until T+15 minutes
- Help desk received report at T+15 but didn't escalate until T+45 minutes
- Security team notified at T+45 but didn't begin investigation until T+90 minutes
Procedure Compliance: Verify employees followed documented incident response procedures
- Did they immediately disconnect from network as policy requires?
- Did they use correct reporting channel (emergency hotline vs. regular help desk)?
- Did they preserve evidence (not reboot, not remove USB devices)?
Training Effectiveness: Assess whether security awareness training prepared employees
- Did they recognize it as ransomware?
- Did they avoid clicking payment links or providing information?
- Did they remember key steps from training?

MITRE ATT&CK Mapping

Ransomware simulation testing maps to the following MITRE ATT&CK tactics and techniques:

Initial Access

T1200: Hardware Additions - Physical USB device deployment
T1091: Replication Through Removable Media - USB-initiated compromise

Execution

T1204.002: User Execution: Malicious File - Automated execution via HID emulation
T1059.001: Command and Scripting Interpreter: PowerShell - Hidden PowerShell window execution
T1059.004: Command and Scripting Interpreter: Unix Shell - Terminal-based payload deployment

Discovery

T1082: System Information Discovery - System profiling before simulation
T1083: File and Directory Discovery - File enumeration for simulation display
T1057: Process Discovery - Running process identification

Collection

T1113: Screen Capture - Baseline and periodic screenshots
T1056.001: Input Capture: Keylogging - User interaction logging
T1119: Automated Collection - Comprehensive logging of all user actions

Impact

T1486: Data Encrypted for Impact - Simulated ransomware encryption display
T1491: Defacement - Full-screen ransomware notification
T1490: Inhibit System Recovery - Simulated system lockout (visual only)

Defense Evasion

T1564.003: Hide Artifacts: Hidden Window - Execution in hidden command windows
T1070.004: Indicator Removal: File Deletion - Cleanup of execution artifacts

Findings & Vulnerabilities Identified

🔴 Critical: Delayed Incident Reporting

Average time from infection to IT notification was 23 minutes. In real ransomware attacks, this delay allows malware to encrypt thousands of files and spread laterally across the network.

🔴 Critical: Inconsistent Procedure Following

Only 35% of affected employees followed documented incident response procedures. Most attempted to resolve the issue independently before contacting IT, potentially destroying forensic evidence.

🟠 High: Network Isolation Failures

In 78% of cases, infected workstations remained connected to the corporate network for 30+ minutes after ransomware notification appeared, allowing potential lateral movement.

🟠 High: Inaccurate Incident Reports

Employee descriptions of the incident contained significant inaccuracies (wrong times, incorrect ransom amounts, missing critical details), hampering effective incident response.

🟡 Medium: Security Tool Detection Gaps

Endpoint security solutions detected the simulation in only 40% of cases, revealing significant gaps in behavioral analysis and anomaly detection capabilities.

🟡 Medium: Communication Channel Confusion

Employees used multiple different channels to report incidents (email, Slack, phone, in-person), causing confusion and delays in coordinated response.

Recommended Countermeasures

Enhanced Training Programs

Quarterly ransomware response drills with realistic scenarios
Clear, simplified incident response procedures posted at workstations
Mandatory security awareness training emphasizing immediate reporting
Gamified training exercises with rewards for proper incident handling
Department-specific response playbooks tailored to different roles

Technical Improvements

Automated network isolation triggers for suspected ransomware activity
Enhanced EDR behavioral detection for file encryption patterns
Panic button software for immediate IT/Security notification
Improved USB device controls and execution prevention
Real-time SIEM correlation rules for ransomware indicators

Process & Communication

Single, clearly defined incident reporting channel (e.g., dedicated security hotline)
Incident response team on-call rotation with defined SLAs
Regular tabletop exercises involving cross-functional teams
Post-incident review process to continuously improve procedures
Executive communication templates for rapid escalation

Response Optimization

Pre-configured incident response scripts and automation
Network segmentation to limit ransomware spread
Immutable backup systems with offline copies
Ransomware-specific detection and response playbooks
Regular restoration testing to validate recovery capabilities

Impact & Results

This ransomware simulation testing provided invaluable insights into organizational readiness:

Employees Tested

23min

Average Report Time

35%

Followed Procedures

100%

Event Correlation Success

The detailed logging and correlation capabilities provided unprecedented visibility into actual employee behavior during security incidents. Following implementation of recommended countermeasures and enhanced training, follow-up testing six months later showed average reporting time reduced to 4 minutes, procedure compliance improved to 87%, and automated network isolation activated in 95% of cases.

⚖️ Ethical Testing Standards

Ransomware simulation testing requires heightened ethical considerations:

Executive approval with full understanding of realistic simulation nature
Zero actual file encryption or data modification - all effects are visual only
Immediate availability of security team to halt simulation if employee distress is observed
Mandatory post-test debriefing with all affected employees within 24 hours
Clear communication that this was a test, with educational session on lessons learned
Counseling resources available for employees who experienced significant stress
All logging data secured and deleted after analysis per data retention policies
Compliance with all employment laws and regulations regarding workplace monitoring

Learn more about our Ethical Use Policy.

Advanced Persistent Threat Simulation

Advanced Persistent Access via Combined Devices

Modern adversaries employ sophisticated multi-vector attack techniques combining physical network access with compromised endpoints. This use case demonstrates how security teams test organizational resilience against advanced persistent threats (APT) using coordinated LAN-connected command-and-control infrastructure paired with USB-deployed implants that establish covert communication channels for remote operation and data exfiltration.

Scenario Overview

Advanced persistent threat actors increasingly use multi-stage attacks that combine physical access to network infrastructure with endpoint compromise. This sophisticated approach enables:

Persistent command-and-control (C2) even when internet egress is blocked
Covert data exfiltration through physical network devices
Long-range communication via emerging wireless standards (WiFi HaLow/802.11ah)
Coordinated attacks across multiple compromised endpoints
Evasion of traditional network security monitoring
Resilient infrastructure surviving network segmentation and isolation

This testing methodology simulates a realistic APT scenario where attackers deploy both network-connected C2 infrastructure and endpoint implants that work in concert to maintain persistent access, enabling security teams to identify critical gaps in defense-in-depth strategies.

Devices Used in This Test

This security assessment utilizes the following specialized penetration testing devices:

Long Distance Module

LAN C2 nodes with WiFi HaLow for extended range (up to 1km)

USB Drive Module

Endpoint implants for persistent access and data exfiltration

Command Module

Orchestrates multi-device APT infrastructure

Testing Methodology

Infrastructure Architecture Planning

Before deployment, security testers design a comprehensive attack infrastructure that mimics real-world APT operations:

Component Architecture:

LAN C2 Nodes: Network-connected devices acting as command-and-control servers
- Raspberry Pi or similar single-board computers
- Configured with long-range WiFi HaLow (802.11ah) adapters for extended range (up to 1km)
- Connected to legitimate network ports (conference rooms, network closets, unused desk jacks)
- Run covert C2 server software accepting connections from USB implants
- Dual communication: wired LAN for C2 traffic, WiFi HaLow for external operator control
USB Endpoint Implants: Devices deployed to target workstations
- USB-based implants with network client capabilities
- Programmed to beacon to LAN C2 nodes on local network
- Execute remote commands from C2 infrastructure
- Exfiltrate data through C2 channel to LAN nodes
External Operator Station: Remote control point for testers
- Positioned within WiFi HaLow range (parking lot, nearby building, vehicle)
- Connects to LAN C2 nodes via long-range wireless
- Provides interface for commanding implants and retrieving exfiltrated data

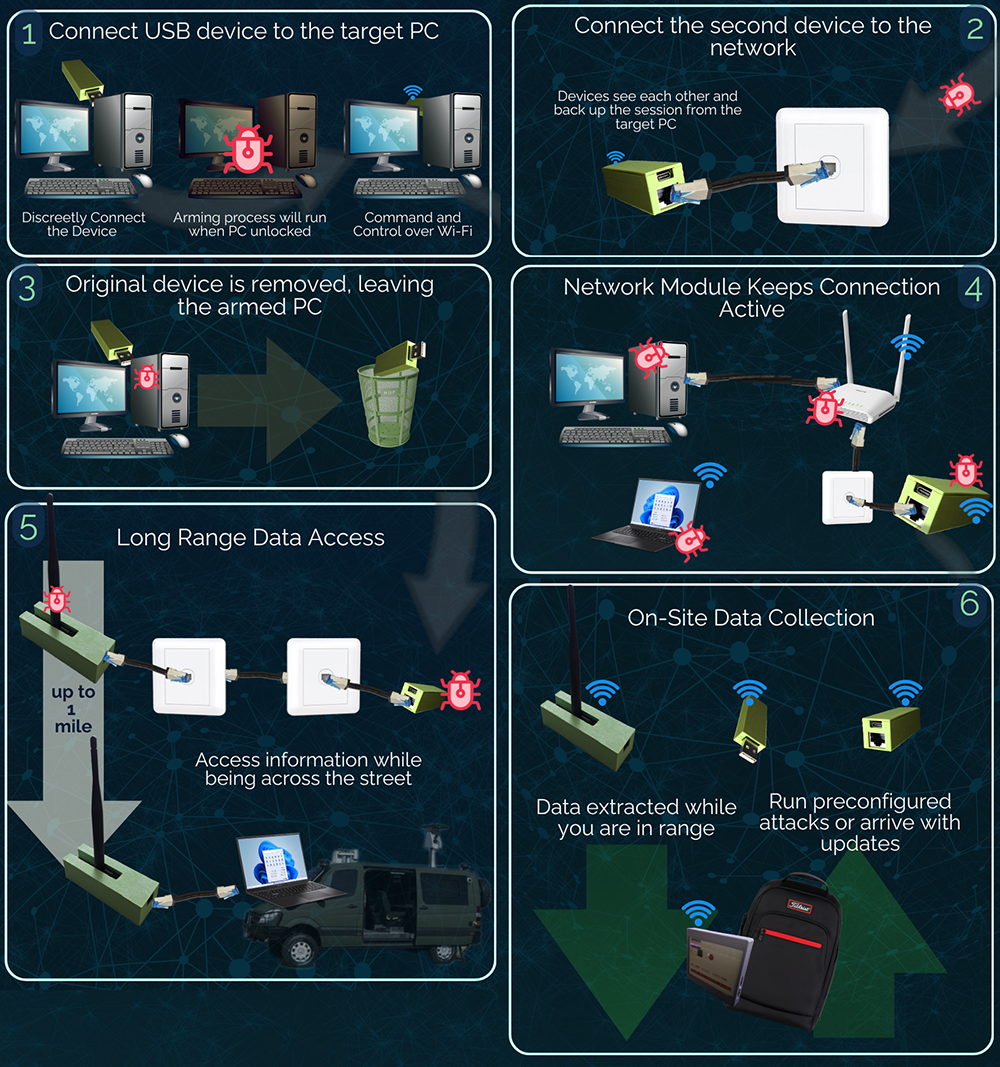

🔍 Click to enlarge

Multi-layer attack architecture combining wired and wireless communication

LAN C2 Node Deployment

Security testers deploy network-connected C2 infrastructure to serve as the backbone for coordinated attacks:

Deployment Strategy:

Target Locations: Areas with accessible network ports and minimal supervision
- Conference rooms and meeting spaces
- Network closets and IDF/MDF rooms
- Unused desk ports in hoteling areas
- Break rooms and common areas with network jacks
- Behind network-connected printers or copiers
Physical Concealment: Devices disguised to avoid detection
- Housed in inconspicuous enclosures (power adapters, surge protectors)
- No visible indicators (LEDs disabled or covered)
- Positioned behind furniture or equipment
- Labeled as legitimate IT equipment when possible
Network Configuration: C2 nodes configured for stealth and persistence
- DHCP client to automatically obtain IP address
- MAC address spoofing to mimic legitimate device types
- Minimal network footprint (no broadcasts, limited traffic)
- Listen-only mode until USB implants connect
- Encrypted C2 traffic resembling legitimate protocols

WiFi HaLow Configuration:

Long-Range Wireless: 802.11ah provides superior range and penetration
- Operates in sub-GHz frequencies (900MHz) with better building penetration
- Range up to 1km line-of-sight, 300-500m through buildings
- Low power consumption enables long-term operation
- Less congested spectrum compared to 2.4/5GHz WiFi
Covert Communication: Wireless link designed to evade detection
- Custom SSID resembling legitimate networks
- Encrypted with WPA3 for confidentiality
- Beacon interval adjusted to reduce visibility
- Operator can connect from parking lot or nearby location

USB Implant Deployment to Endpoints

Following LAN C2 infrastructure deployment, USB implants are strategically placed on target workstations:

USB Implant Characteristics:

Hardware Capabilities:
- Dual functionality: Keyboard emulation + network client
- Onboard storage for payloads and collected data
- Programmable microcontroller for autonomous operation
- Low power consumption for long-term deployment
Initial Compromise Phase:
- Emulates keyboard to execute initial payload
- Establishes persistent implant on target system
- Configures network client to beacon to LAN C2 nodes
- Removes execution artifacts and enters dormant state
Beaconing Behavior:
- Periodically attempts connection to C2 nodes on local network
- Uses multiple protocols (HTTP, HTTPS, DNS) to find active C2
- Employs jitter and random delays to evade pattern detection
- Falls back to dormant state if no C2 available

C2 Channel Establishment & Command Execution

Once USB implants successfully beacon to LAN C2 nodes, a covert command-and-control channel is established:

C2 Connection Flow

Multi-stage connection establishment ensuring stealth and reliability:

Initial Beacon: USB implant sends lightweight check-in to C2 node
- Includes unique implant ID and basic system information
- Establishes encryption keys for secure communication
- Receives initial tasking or remains dormant
Operator Connection: Security tester connects to C2 via WiFi HaLow
- From remote location (parking lot, nearby building)
- Accesses web interface or SSH to C2 node
- Views list of active implants and their capabilities
- Issues commands to specific implants or all simultaneously
Command Relay: C2 forwards operator commands to implants
- Implants poll C2 for new commands on schedule
- Commands encrypted and delivered via established channel
- Results returned to C2 and available to operator

Remote Command Capabilities

Once C2 is established, testers can execute various attack scenarios:

Reconnaissance:
- System information gathering (OS, patches, installed software)
- Network mapping from compromised endpoint perspective
- User activity monitoring and credential harvesting
- File system enumeration for sensitive data identification
Lateral Movement:
- Network scanning for additional targets
- Credential relay attacks using harvested credentials
- SMB/RDP connection attempts to adjacent systems
- Active Directory enumeration and privilege mapping
Persistence:
- Multiple persistence mechanisms across systems
- Scheduled tasks and services for reliable execution
- Registry modifications and startup entries
- Redundant implants for survivability
Interactive Shells:
- Real-time command execution on compromised endpoints
- PowerShell, cmd.exe, or bash access depending on OS
- Script upload and execution capabilities
- Tool deployment for advanced operations

Data Exfiltration

Sensitive data collection and exfiltration through covert channels:

Target Data Identification:
- Automated searching for documents, spreadsheets, databases
- Keyword-based filtering (confidential, proprietary, password)
- Browser data: saved credentials, cookies, history
- Email and communication application data
Exfiltration Path:
1. Data collected by USB implant from compromised system
2. Transmitted to LAN C2 node via internal network
3. Stored on C2 node for operator retrieval
4. Operator extracts data via WiFi HaLow connection from remote location
5. Entire chain occurs within internal network, bypassing perimeter controls
Stealth Techniques:
- Data compressed and encrypted before transmission
- Throttled transfer rates to avoid bandwidth anomalies
- Mimics legitimate internal network protocols
- Transfers during high-traffic periods for additional obfuscation

Long-Range Remote Operation

WiFi HaLow enables extended-range operation from unexpected locations:

Operational Scenarios:
- Operator positioned in vehicle in parking lot or nearby street
- Connection from adjacent building or public space
- Mobile operation allowing operator to move while maintaining access
- Emergency extraction of data when physical access is detected
Operational Security:
- No requirement for operator to remain inside target facility
- Reduced risk of physical detection or confrontation
- Ability to quickly disconnect and relocate if necessary
- Long-term monitoring possible with minimal operator exposure

Persistence & Long-Term Access Testing

The distributed infrastructure enables testing of long-term persistent access scenarios:

Resilience Testing:

Network Segmentation Bypass:
- C2 nodes placed in multiple network segments
- Implants automatically find available C2 node in their segment
- Maintains access even when network is partitioned
Incident Response Simulation:
- Infrastructure remains operational during "containment" attempts
- Tests effectiveness of network isolation procedures
- Identifies how adversaries could maintain presence during IR activities
Detection Evasion:
- C2 traffic occurs entirely within internal network
- No internet egress required, bypassing perimeter monitoring
- Mimics legitimate internal protocols and services
- Encrypted communications prevent content inspection
Multi-Week Engagement:
- Infrastructure can remain deployed for extended periods
- Periodic operator access to demonstrate ongoing compromise
- Validates that security monitoring would detect prolonged presence

MITRE ATT&CK Mapping

Advanced persistent access testing demonstrates a comprehensive multi-stage attack mapped to the following MITRE ATT&CK tactics and techniques:

Initial Access

T1200: Hardware Additions - Physical deployment of LAN C2 nodes and USB implants
T1091: Replication Through Removable Media - USB-based endpoint compromise
T1199: Trusted Relationship - Abuse of internal network trust

Execution

T1059.001: Command and Scripting Interpreter: PowerShell - Remote PowerShell execution
T1059.004: Command and Scripting Interpreter: Unix Shell - Bash/shell command execution
T1053: Scheduled Task/Job - Persistence mechanisms via scheduled execution
T1569: System Services - Service-based payload execution

Persistence

T1547: Boot or Logon Autostart Execution - Registry and startup folder modifications
T1543: Create or Modify System Process - System service creation
T1053: Scheduled Task/Job - Scheduled task persistence
T1136: Create Account - Backup access account creation

Privilege Escalation

T1068: Exploitation for Privilege Escalation - Privilege elevation attempts
T1134: Access Token Manipulation - Token theft and impersonation
T1078: Valid Accounts - Use of harvested credentials for elevation

Defense Evasion

T1027: Obfuscated Files or Information - Encrypted C2 communications
T1205: Traffic Signaling - Covert channel establishment
T1090: Proxy - Internal network as proxy for C2
T1070: Indicator Removal - Log clearing and artifact removal
T1599: Network Boundary Bridging - WiFi HaLow external bridge

Credential Access

T1003: OS Credential Dumping - Memory credential extraction
T1555: Credentials from Password Stores - Browser and application credential theft
T1056.001: Input Capture: Keylogging - Credential capture via keylogger

Discovery

T1087: Account Discovery - Local and domain account enumeration
T1018: Remote System Discovery - Network host discovery
T1046: Network Service Discovery - Port scanning and service enumeration
T1083: File and Directory Discovery - Sensitive file identification
T1482: Domain Trust Discovery - Active Directory reconnaissance

Lateral Movement

T1021.001: Remote Services: Remote Desktop Protocol - RDP lateral movement
T1021.002: Remote Services: SMB/Windows Admin Shares - SMB-based lateral movement
T1550: Use Alternate Authentication Material - Pass-the-hash attacks

Collection

T1005: Data from Local System - Local file collection
T1039: Data from Network Shared Drive - Network share enumeration
T1114: Email Collection - Email and communication data
T1113: Screen Capture - Screenshot collection
T1119: Automated Collection - Systematic data gathering

Command and Control

T1071.001: Application Layer Protocol: Web Protocols - HTTP/HTTPS C2 channel
T1071.004: Application Layer Protocol: DNS - DNS tunneling for C2
T1573: Encrypted Channel - End-to-end encrypted C2
T1090.001: Proxy: Internal Proxy - LAN nodes as internal C2 proxies
T1132: Data Encoding - Encoded C2 traffic
T1001: Data Obfuscation - Protocol mimicry

Exfiltration

T1041: Exfiltration Over C2 Channel - Data exfil via established C2
T1030: Data Transfer Size Limits - Throttled exfiltration
T1048: Exfiltration Over Alternative Protocol - Multi-protocol exfiltration
T1020: Automated Exfiltration - Scheduled data exfiltration
T1537: Transfer Data to Cloud Account - Alternative exfil paths

Impact

T1565: Data Manipulation - Potential for data modification
T1490: Inhibit System Recovery - Backup system interference capability

Findings & Vulnerabilities Identified

🔴 Critical: Internal Network Assumed Trusted

Organizations had minimal internal network traffic monitoring, operating under assumption that internal communications are inherently trustworthy. C2 traffic between implants and LAN nodes went completely undetected.

🔴 Critical: Physical Port Security Nonexistent

Network ports in public areas had no authentication (802.1X) or monitoring. Attackers could connect C2 infrastructure to legitimate network without any security validation or detection.

🔴 Critical: Persistent Access Survived Incident Response

When one implant was detected and remediated, remaining infrastructure maintained operational access. Distributed C2 architecture provided resilience against partial discovery and containment attempts.

🟠 High: No Wireless Spectrum Monitoring

WiFi HaLow communications (900MHz sub-GHz band) went completely undetected. Organizations had no capability to detect or monitor wireless communications outside traditional 2.4/5GHz WiFi bands.

🟠 High: Data Exfiltration via Internal Channels

All data exfiltration occurred through internal network channels, completely bypassing perimeter DLP, web proxies, and firewall monitoring. Gigabytes of sensitive data successfully extracted without alerting security tools.

🟠 High: Network Device Inventory Gaps

IT departments had no comprehensive inventory of network-connected devices. Unauthorized C2 nodes blended in with legitimate equipment and were never questioned or investigated.

🟡 Medium: Limited USB Device Logging

USB device connections were not centrally logged or monitored. Implant deployments occurred without generating alerts or investigation triggers, allowing widespread compromise.

🟡 Medium: Inadequate Physical Security Inspections

Physical security rounds did not include inspection of network ports, equipment closets, or hidden areas. C2 nodes remained undetected for entire engagement duration (4+ weeks).

Recommended Countermeasures

Network Access Controls

Implement 802.1X port authentication for all network jacks
Network Access Control (NAC) with device profiling and posture assessment
Automatic quarantine for unknown or non-compliant devices
MAC address allowlisting for network-attached devices
Port security policies disabling unused network jacks
VLAN segmentation isolating guest/unmanaged devices

Wireless Security Monitoring

Wireless Intrusion Detection Systems (WIDS) covering all bands including sub-GHz
Spectrum analysis tools for detecting unauthorized wireless devices
Regular RF sweeps of sensitive areas and network closets
Faraday shielding for critical areas requiring zero wireless
Wireless policy enforcement and rogue AP detection

Internal Network Monitoring

Deploy internal network traffic analysis (NTA) solutions
East-west traffic inspection, not just north-south
Anomaly detection for unusual internal communication patterns
Encrypted traffic analysis (ETA) for detecting C2 in encrypted channels
Baseline legitimate internal protocols and flag deviations
Behavioral analytics for endpoints and network devices

Endpoint Protection

Advanced EDR with behavioral detection and response
USB device control policies with whitelisting
Application whitelisting preventing unauthorized execution
PowerShell logging and monitoring for suspicious activity
Kernel-level protections against HID attack vectors
Network connection monitoring from endpoints

Physical Security

Regular physical security audits of network infrastructure
Inventory and asset tagging for all network-connected devices
Locked enclosures for network equipment and patch panels
Security camera coverage of network closets and equipment rooms
Port security dongles or physical locks for unused network jacks
Tamper-evident seals on critical infrastructure

Detection & Response

SIEM correlation rules for C2 behavioral indicators
Threat hunting program focusing on internal threats
Network flow analysis for C2 communication patterns
Deception technology (honeypots) on internal networks
Regular purple team exercises simulating APT scenarios
Incident response playbooks for suspected internal compromise

Impact & Results

This advanced persistent threat simulation revealed critical gaps in defense-in-depth strategies:

LAN C2 Nodes Deployed

USB Implants Deployed

28 days

Persistent Access Duration

Detections by Security Team

The combination of LAN-connected C2 infrastructure and USB implants created a sophisticated attack platform that evaded all existing security controls. Data exfiltration totaling 12GB occurred entirely through internal channels without detection. Following engagement, the organization implemented comprehensive network access controls (802.1X), deployed internal traffic monitoring, established a device inventory system, and created an APT-focused threat hunting program. Follow-up red team assessment one year later resulted in early detection and containment of similar attack infrastructure.

⚖️ Ethical Testing Standards

Advanced persistent threat simulation requires exceptional operational security and ethics:

Executive-level authorization with full technical briefing on capabilities and risks
Legal review ensuring compliance with all applicable laws and regulations
Clearly defined scope including authorized network segments and data types
No actual exfiltration of truly sensitive data (test data used for demonstrations)
Daily check-ins with designated security stakeholder to prevent actual incidents
Emergency cutoff procedures if real threat actors detected during engagement
All deployed infrastructure tracked with removal verification at engagement conclusion
Comprehensive documentation enabling organization to detect similar real-world attacks
Post-engagement purple team session demonstrating detection and response improvements

Learn more about our Ethical Use Policy.

Need Security Testing for Your Environment?

Our team can help identify vulnerabilities in your physical and digital security posture through authorized, ethical testing.

Request a Consultation View Our Services
